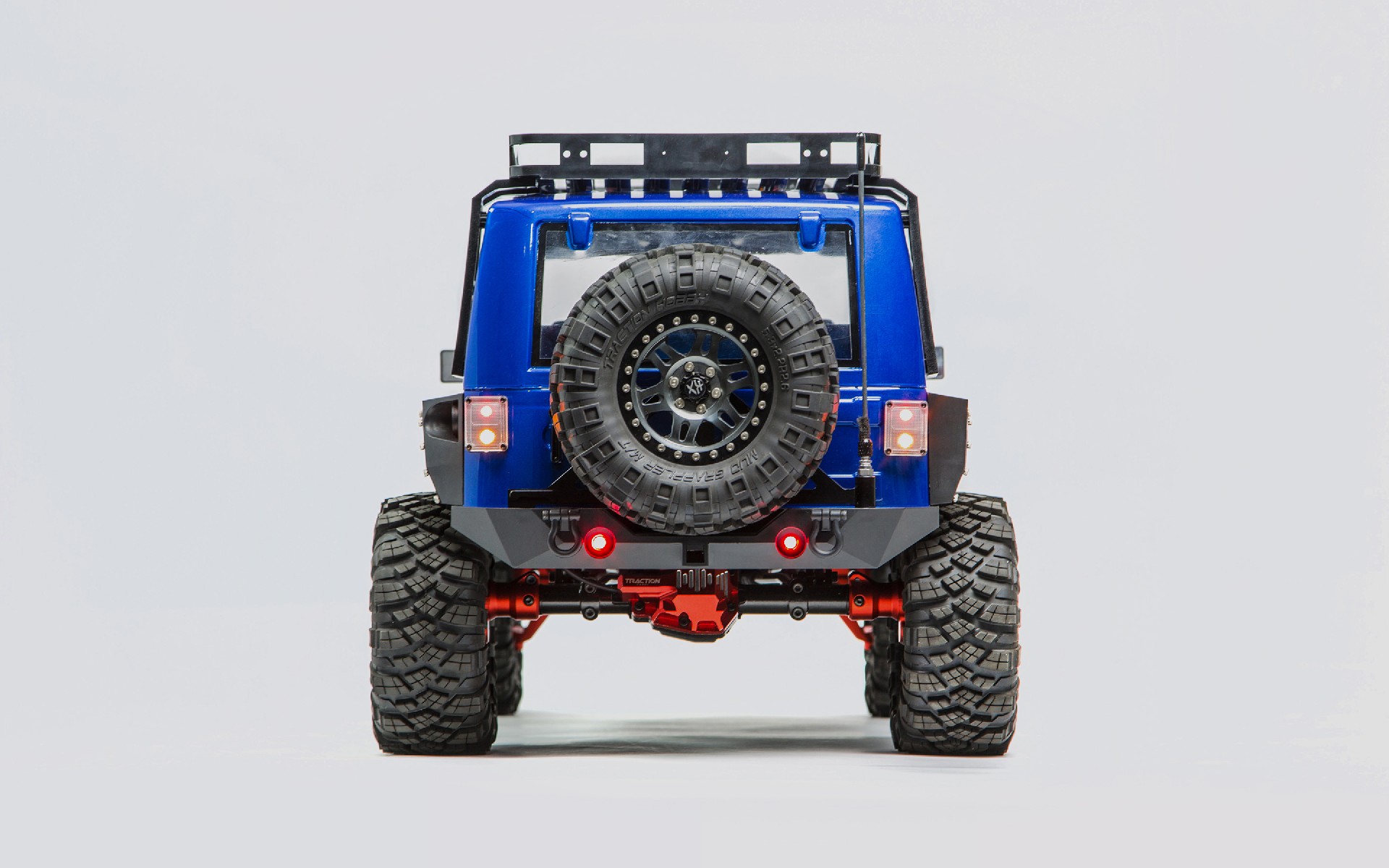

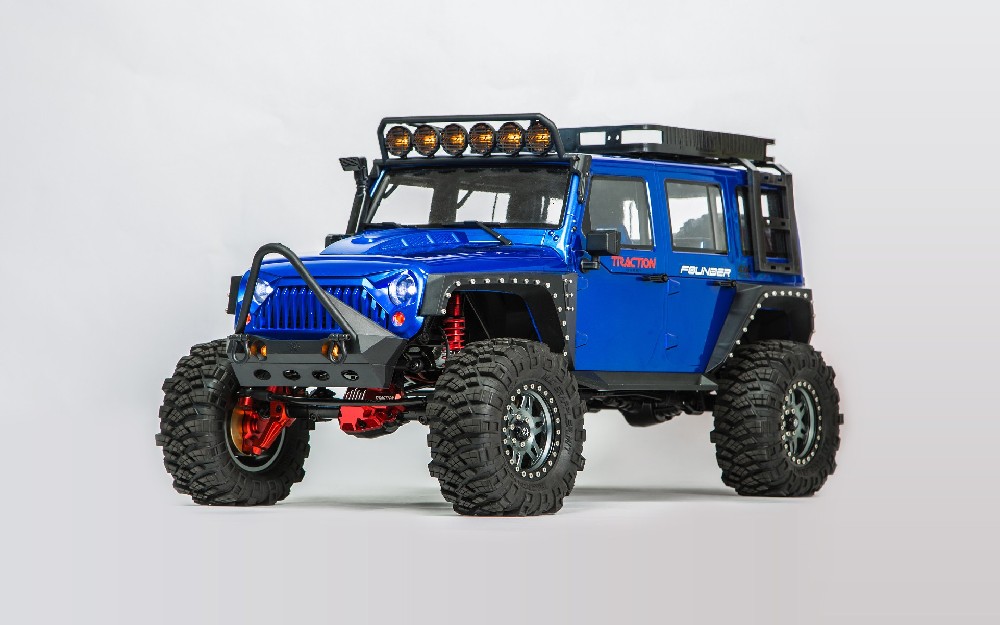

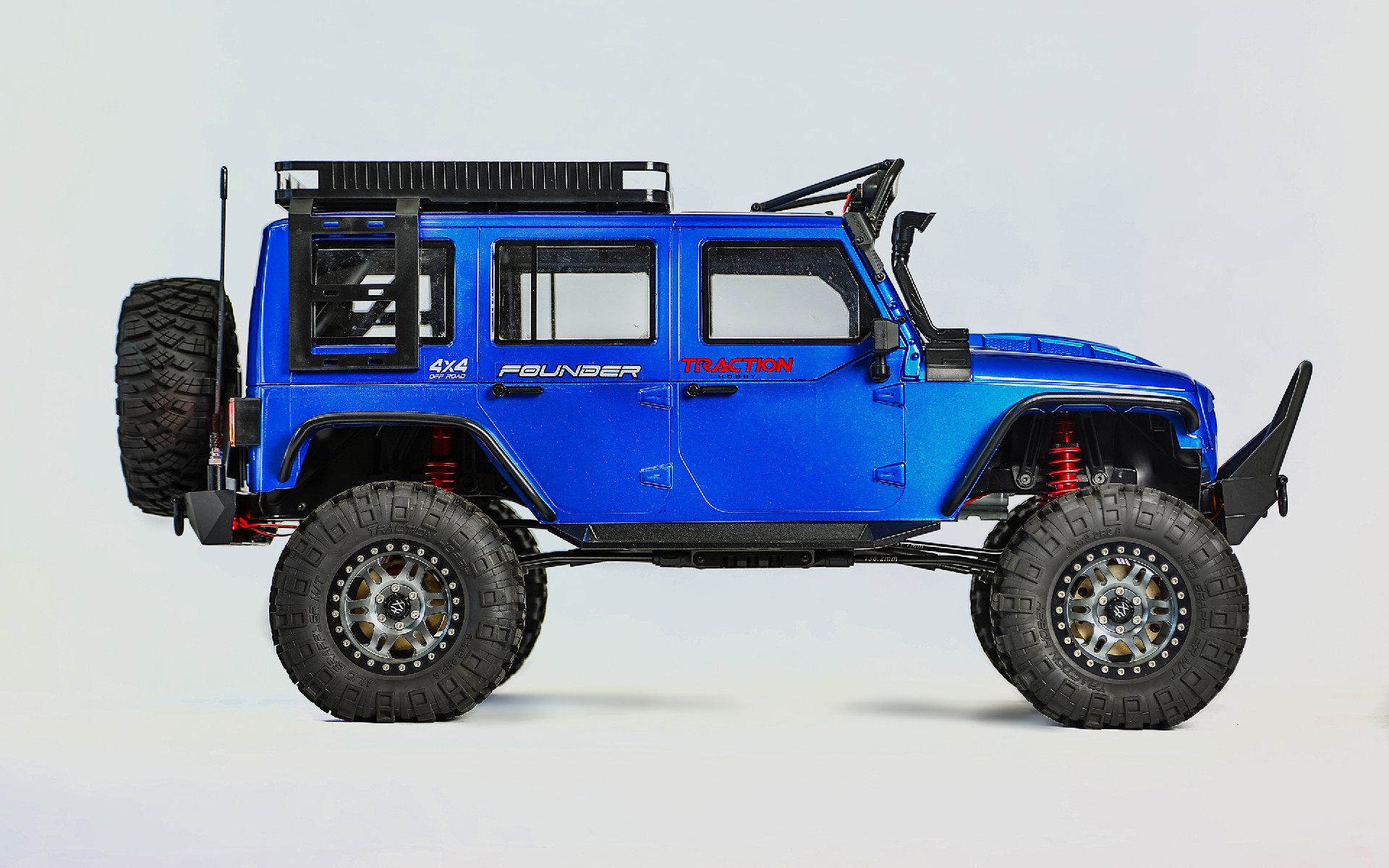

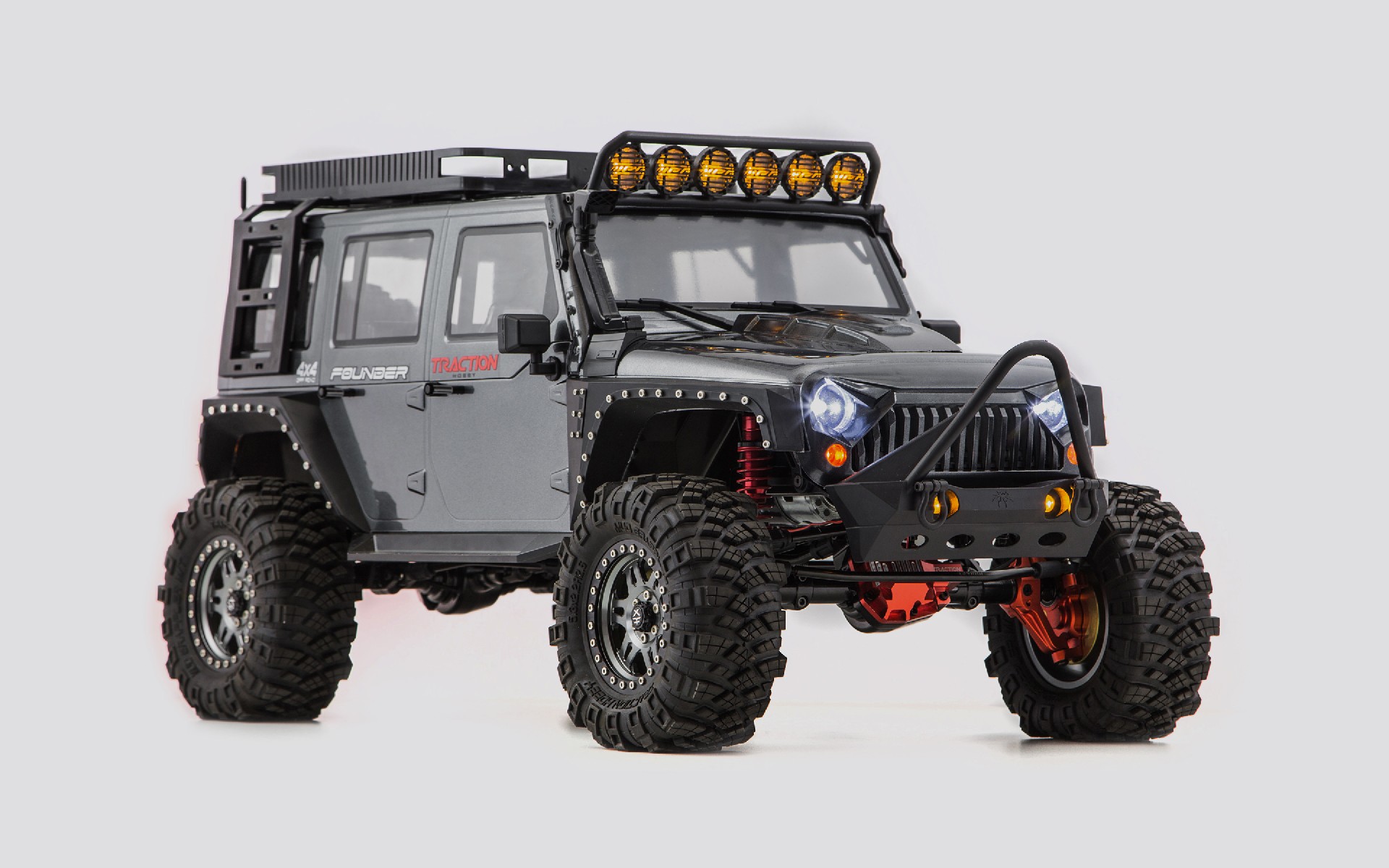

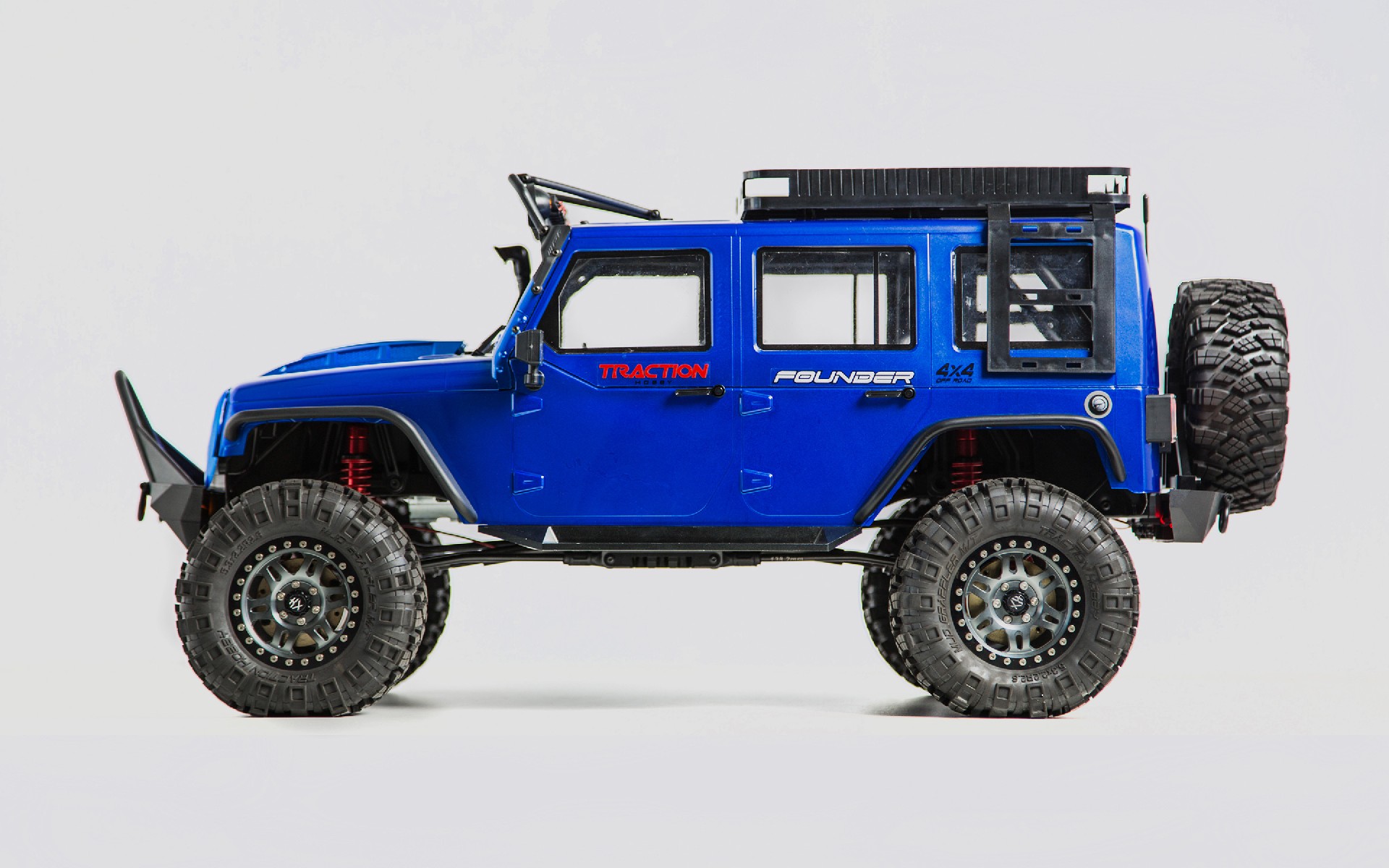

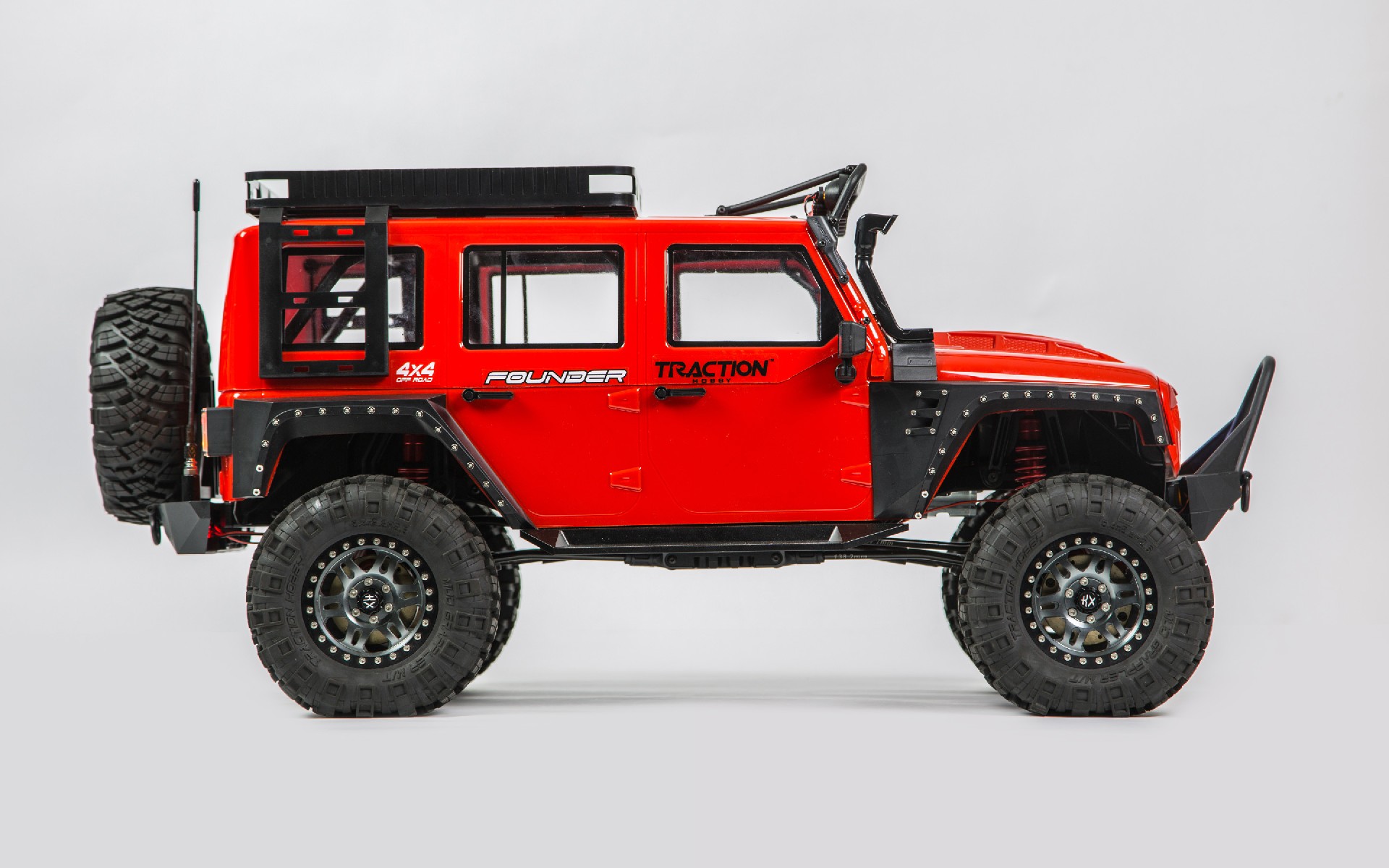

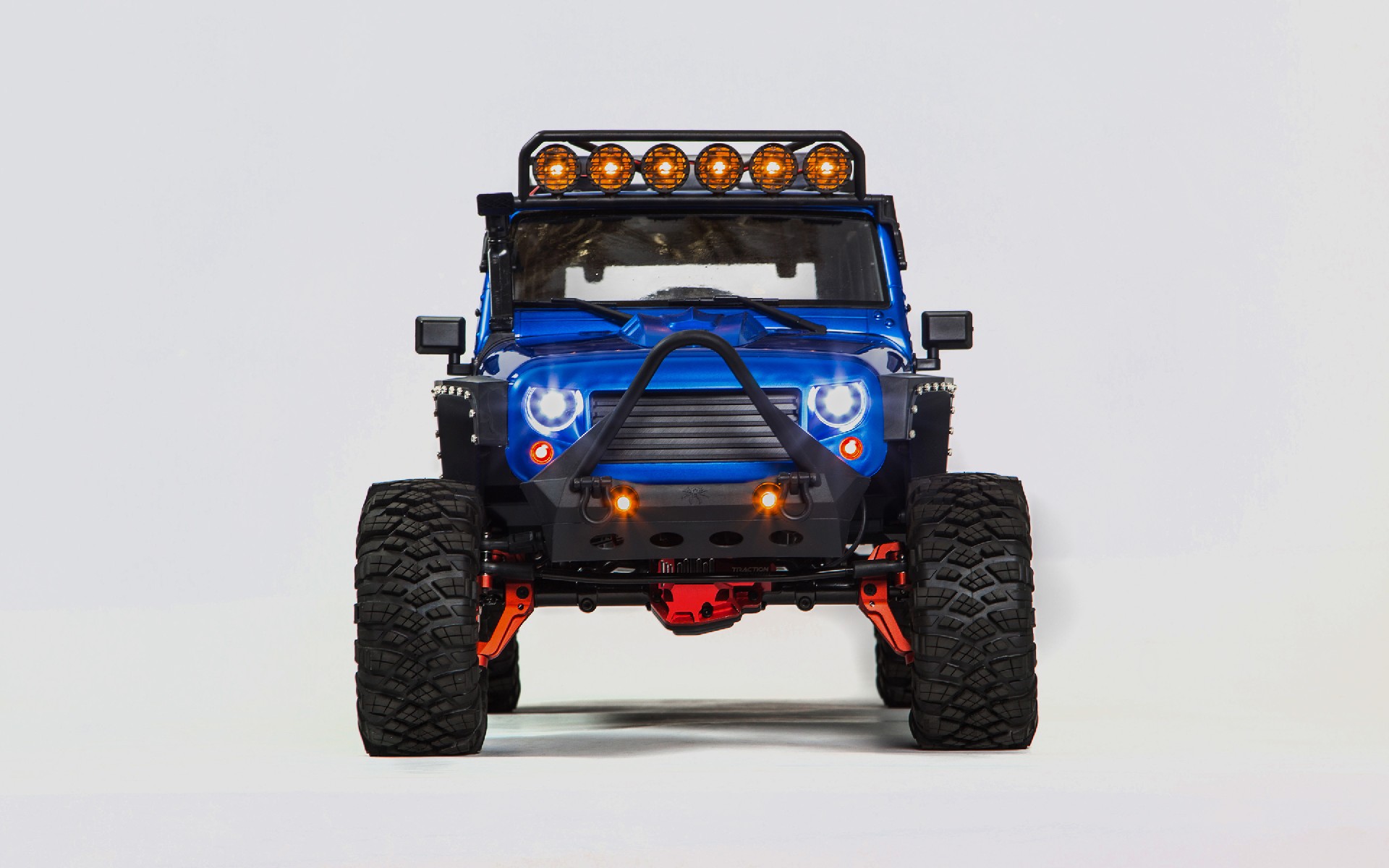

| FOUNDER PRO 1/8 Crawler （RTR） |
| Manufacturer | Traction Hobby (TH) |
|
| Model | Founder Pro |
| Scale | 1:8 |
| Type | Crawler |
| Battery | 2-4S Lipo |
| Max Battery Size | 150mmx46mmx40mm |
|
| Version | RTR |
| Dimension | 670x315x307mm |
| Carton Size | 710x365x345mm |
| Car Structure | Portal Axle System |
| Car Body |
| Wheelbase | 374mm |
|
| Wheel Track | 265mm |
| Min Ground Clearance | 55mm |
| Approach Angle | 65° |
| Passing Angle | 52° |
| Departure Angle | 49° |
| Quality |
|
| Motors & Servos |
| Available Servos | #540 #550 #775 Brush Or 1:8 Brushless | Max D:46mm，L:75mm |
| Motor Gears | Equiped 14T | Adjustable Gear Gap 12-20T |
| Transmission |
| Gearbox | Integrated Gearbox | 2 Speeds/Reversion/Front/Rear/4WD In Gear box |
| Shifts | 2 Shifts | Metal Gears High Voltage Waterproof Servo |
| Broken Transmission | Servo Pulling | Metal Gears High Voltage Waterproof Servo |
| Steering System |
| Steering Servo Mount | Metal Servo Mount | ALU Metal CNC Casting |
| Sevro Arm | Metal Steering（25T） | ALU Metal CNC Casting |
| Steering Way | Servo Pulling(Servo Protection) | 23Kg Metal High Voltage Servo |
| Full Metal CNC Casting Chassis |
| Chassis | 1.2mm Steeling C-Shape Chassis |
| Driving | 3 differential distribute in front,middle and rear | Front/Rear/4WD |
| Suspensions | Non-indenpend Suspensions | Steel Rods |
| Transmission | Metal Gears | Metal Shafts |
| Shocks | 90mm | Full Metal |
| Shocks Mount | Alu CNC Casting |
| Axles | Straight Axle（Available Diff） | Metal Axle CNC Axle Cover |
| Side Bars | Blade Side Bars | Alu CNC Casting |
| Simulation Parts | Simulation Snokle、Roof Rack Ladder、Bumper、Wiper、Doorknob |
| Rear Cross Beam | Rear Diff Mount | Alu CNC Casting |
| Servo Mount | Metal Board | Alu CNC Casting |
| Wheel Hub | 2.6 Inch | Alu CNC Casting |
| Tyres | D: 135mm W: 55mm | Stinger Tyre |
| Spare Tyre Frame | Metal Spare Tyre Frame | Alu CNC Casting |
| Spare Tyre | Full Size Of Simulation Tyre | Alu CNC Casting Hub |
| Counterweight | Front185g*2，Rear 105g*2 | Brass Material |
| Adaptive Terrain | All Terrain |
|
| Electronics |
| Remote Control | TH-GT5 | 6 Channels |
| ESC | Hobbywing 880（BEC7.4V） | Customized HV Water-proof ESC |
| Motor | RS775 Brushed Motor | Customized Motor 18000rpm |
| Light Set | Interacted Simulation Light Set |
| MOQ: 20 Units |
